Model 5600 Light parts breakdown
|
 |
1 - Potted Can
The potted can assembly comes complete with the "Copper Can", "Power Cord" and "Porcelain Bulb Socket" It is available with 10ft, 20ft, 30ft, 40ft, and 50ft, cord lengths.
|
84300 |
10ft cord - Potted Can |
|
|
|
 |
2 - Porcelain Socket
The porcelain bulb socket is the only serviceable part in the potted can. Comes as pictured with socket and wire leads.
84017 |
Porcelain Light Socket |
|
|
 |
3 - 300W - 500W Bulb
The 300W / 500W 120V PAR56 bulb is available in either NSP (narrow spot) or MFL (medium Flood)
|
84012 |
NSP - Narrow Spot 300W 120V PAR 56 |
|
|
84013 |
MFL - Medium Flood 300W 120V PAR 56 |
|
|
84008 |
MFL - Medium Flood 500W 120V PAR 56 |
|
|
84015 |
NSP - Narrow Spor 500W 120V PAR 56 |
|
|
|
 |
4 - Bottom Flange
The bottom flange is cast brass and is threaded in order to receive the bolts.
84110 |
Threaded Bottom Flange |
|
|
84900 |
9" Clear Lens |
|
|
84901 |
9" Amber Lens |
|
|
84902 |
9" Turquoise Lens |
|
|
84903 |
9" Light Red Lens |
|
|
84904 |
9" Dark Red Lens |
|
|
84905 |
9" Blue Lens |
|
|
84906 |
9" Green Lens |
|
|
|
|
5 - Glass Lens
The lenses are constructed out of glass and are available in six colors and clear.
|
Lens Color |
Light Transmittance |
|
What do these numbers mean?
On the clear lens it means that 92% of the light is able to pass through the lens.
On the Green lens it means that 3% of the light is able to pass through the lens.
That is why the dark colors are only recommended in dimly lit areas.
|
Clear |
92% |
Use for maximum brilliance |
Amber |
55% |
Turquoise |
23% |
Light Red |
20% |
Dark Red |
7% |
Use only where other lighting will not interfere with fountain lighting. |
Blue |
3% |
Green |
3% |
 |
5A - Lens Gasket
The lens gasket is constructed out of red silicone.
38114 |
Red Silicone Gasket |
|
|
 |
6 - Top Flange
The top flange is cast brass and is NOT threaded. The holes in the flange are large enough the the bolts freely slide through them.
84112 |
Threaded Bottom Flange |
|
|
 |
7 & 8 - Stainless Steel Bolts
There are three different lengths of stainless steel bolts. Two for the mounting holes, four for the holes with the rock guard, and two for the remaining holes.
84220 |
1/4-20 x 1/2 (2) required |
|
87860 |
1/4-20 x 1 (2) required |
|
86101 |
1/4-20 x 1 1/4 (4) required |
|
|
 |
9 - Stainless Steel Rock Guard
39069 |
Threaded Bottom Flange |
|
|
|

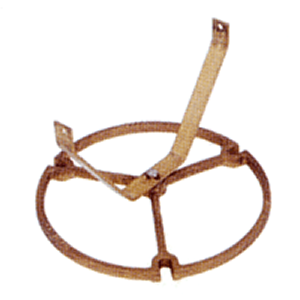

Bronze Base and Yoke
84560 |
Cast Bronze Base and Yoke complete |
|
85220 |
Base only, Cast Bronze |
|
84131 |
Bracket "Yoke" only - Brass |
|
84220 |
1/4-20 x 1/2" SS Bolt |
|
87274 |
Lockwasher Split type 1/4" |
|
|
Complete 5600 Lights

5600 Lights with 300 Watt NSP (narrow spot bulb)
|
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
Price |
|
84311 |
5600 |
300w / 120v |
10 ft. power cord |
Clear |
|
|
84312 |
5600 |
300w / 120v |
10 ft. power cord |
Amber |
|
Call |
84313 |
5600 |
300w / 120v |
10 ft. power cord |
Turquoise |
|
Call |
84314 |
5600 |
300w / 120v |
10 ft. power cord |
Light Red |
|
Call |
84315 |
5600 |
300w / 120v |
10 ft. power cord |
Dark Red |
|
Call |
84316 |
5600 |
300w / 120v |
10 ft. power cord |
Blue |
|
Call |
84317 |
5600 |
300w / 120v |
10 ft. power cord |
Green |
|
Call |
| |
|
|
|
|
|
|
5600 Lights with 300 Watt MFL (medium flood bulb)
|
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
Price |
|
84301 |
5600 |
300w / 120v |
10 ft. power cord |
Clear |
|
Call |
84302 |
5600 |
300w / 120v |
10 ft. power cord |
Amber |
|
Call |
84303 |
5600 |
300w / 120v |
10 ft. power cord |
Turquoise |
|
Call |
84304 |
5600 |
300w / 120v |
10 ft. power cord |
Light Red |
|
Call |
84305 |
5600 |
300w / 120v |
10 ft. power cord |
Dark Red |
|
Call |
84306 |
5600 |
300w / 120v |
10 ft. power cord |
Blue |
|
Call |
84307 |
5600 |
300w / 120v |
10 ft. power cord |
Green |
|
Call |
5600 Lights with 500 Watt NSP (narrow spot bulb)
|
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
Price |
|
84511 |
5600 |
500w / 120v |
10 ft. power cord |
Clear |
Call |
|
84512 |
5600 |
500w / 120v |
10 ft. power cord |
Amber |
Call |
|
84513 |
5600 |
500w / 120v |
10 ft. power cord |
Turquoise |
Call |
|
84514 |
5600 |
500w / 120v |
10 ft. power cord |
Light Red |
Call |
|
84515 |
5600 |
500w / 120v |
10 ft. power cord |
Dark Red |
Call |
|
84516 |
5600 |
500w / 120v |
10 ft. power cord |
Blue |
Call |
|
84517 |
5600 |
500w / 120v |
10 ft. power cord |
Green |
Call |
|
| |
|
|
|
|
|
|
5600 Lights with 500 Watt MFL (medium flood bulb)
|
Part # |
Model # |
Watts / Volts |
Cord Length |
Lens Color |
Price |
|
84501 |
5600 |
500w / 120v |
10 ft. power cord |
Clear |
|
|
84502 |
5600 |
500w / 120v |
10 ft. power cord |
Amber |
Call |
|
84503 |
5600 |
500w / 120v |
10 ft. power cord |
Turquoise |
Call |
|
84504 |
5600 |
500w / 120v |
10 ft. power cord |
Light Red |
Call |
|
84505 |
5600 |
500w / 120v |
10 ft. power cord |
Dark Red |
Call |
|
84506 |
5600 |
500w / 120v |
10 ft. power cord |
Blue |
Call |
|
84507 |
5600 |
500w / 120v |
10 ft. power cord |
Green |
Call |
|
|
|
|
